Learning Rate Range Test

This tutorial shows how to use to perform Learning Rate range tests in PyTorch.

Learning Rate Range Test (LRRT)

Learning rate range test ( LRRT ) is a method for discovering the largest learning rate values that can be used to train a model without divergence. Data scientists are often interested in this information because large learning rates lead to faster model convergence than a small learning rates. Moreover, large learning rates are crucial in learning rate schedules such as CLR and 1Cycle, which are used to train effectively with large batch sizes. DeepSpeed provides LRRT for model training in PyTorch frameworks.

Prerequisites

To use DeepSpeed’s LRRT, you must satisfy the following two conditions:

  1. Integrate DeepSpeed into your training script using the Getting Started guide.
  2. Add the parameters to configure LRRT to the parameters of your model. The LRRT parameters are defined below.

LRRT Parameters

LRRT works by linearly increasing the learning rate by a predefined amount, at predefined intervals. Thus, LRRT is a form of learning rate schedule because it defines how and when the learning rate should change during model training. To configure LRRT, you will need to set these parameters:

  1. lr_range_test_min_lr : The initial learning rate for training (float)
  2. lr_range_test_step_size: The interval for scaling up learning rate, defined in training steps (integer)
  3. lr_range_test_step_rate: The scaling factor for increasing learning rate (float)
  4. lr_range_test_staircase: If true, learning rate is changed every lr_range_test_step_size training steps, otherwise learning rate is changed at every training step (boolean)

Required Model Configuration Changes

We will illustrate the required model configuration changes an example LRRT schedule that:

  1. Starts training with an initial learning rate of 0.0001
  2. Uses a scaling rate of 5
  3. Uses a scaling interval of 200 training steps
  4. Scales learning rate at every training step, i.e., does not use staircase

PyTorch

For PyTorch models, LRRT is implemented as a learning rate scheduler, a feature that is available in PyTorch versions 1.0.1 and newer. Thus, you can add a "scheduler" entry of type "LRRangeTest" into your model configuration as illustrated below:

"scheduler": {
    "type": "LRRangeTest",
    "params": {
        "lr_range_test_min_lr": 0.0001,
        "lr_range_test_step_size": 200,
        "lr_range_test_step_rate": 5,
        "lr_range_test_staircase": false
    }
}

Example: Tuning for Large Batch Sizes

We illustrate how LRRT can benefit data scientists with a snippet of our experience of tuning an internal production model to converge efficiently on larger batch sizes, as we scaled from one GPU (batch size 512) to four GPUs (batch size 2048). Our goal was to train the model with the larger batch size to match the performance of the smaller batch size using the same amount of data samples. The challenge here is the well known problem of slow convergence of large batch size training. Our approach was to use a 1Cycle schedule in DeepSpeed to tackle this problem, and we used LRRT to configure the schedule.

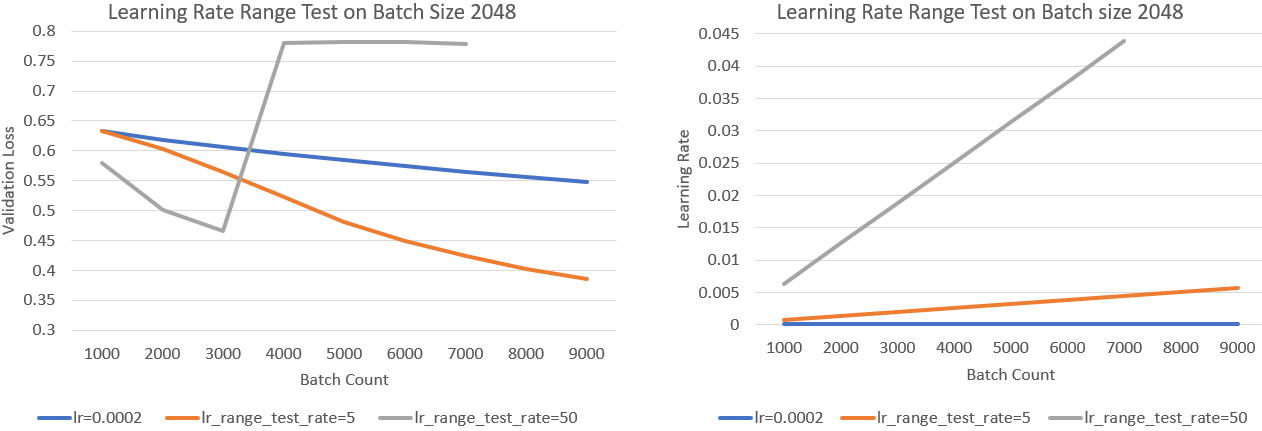

In the plots below, we illustrate using LRRT to discover the maximum learning rates for effective training with batch size 2048. The plot on the left shows the impact of large learning rates on validation loss over the first 9000 batches of training. The plot on the right shows the learning rate values during the same period of training. Using grid search we discover that the best fixed learning rate for the batch size 2048 is 0.0002. The blue line (lr=0.0002) represents training with this fixed learning rate. We compare the two LRRT schedules with this fixed learning rate. The orange (lr_range_test_step_rate=5) and gray (lr_range_test_step_rate=50) lines represent training with similar LRRT schedules that differ only in lr_range_test_step_rate values. Although the LRRT schedules start from the same base learning rate, the gray line’s learning rate grows about 10 times faster than the orange line. Also, the learning rates of the LRRT schedules had grown larger than that of the blue line in the presented data points. We subsequently refer to the gray line as “fast growing”, and the orange line as “slow growing” LRRT schedules respectively.

validation_loss

We make the following observations from this small example.

  1. Larger learning rates clearly benefit model performance, up to some point. The fast growing LRRT schedule achieves validation loss of 0.46 after 3000 batches, which the fixed learning rate does not achieve with 9000 batches. The slow growing LRRT does not match that score until after 6000 batches, however it maintains an increasing performance advantage over the fixed learning rate.

  2. There is an upper bound on learning rate values that are useful for training the model. The fast growing LRRT schedule hits this boundary quickly and diverges, while the slow growing LRRT will later diverge for the same reason. LRRT helped us discover these boundaries quickly, using less than 2% of the training data. These boundaries are useful information for constructing learning rate schedules.

These observations from LRRT helped us to configure the learning rate boundaries and the cycle span for a 1Cycle schedule that solves the problem, as shown below.

"OneCycle": {
    "cycle_min_lr": 0.002,
    "cycle_max_lr": 0.005,
    "cycle_first_step_size": 2000,
    "cycle_second_step_size": 2000,
    ...
}

In our experience these are four most critical parameters of 1Cycle schedules.

  1. We chose to use the slower LRRT schedule (lr_range_test_step_rate=5) to set cycle_min_lr because it achieves the best loss and the faster schedule diverges fairly quickly.
  2. We set cycle_min_lr to 0.005 even though the plot shows that performance was still improving at slightly higher learning rate. This is because we observed that if we wait till the maximum learning rate, the model could be at the point of divergence and impossible to recover.
  3. Since it takes 8000 batches for the learning rate to become 0.005, we set cycle_first_step_size and (cycle_second_step_size) to 2000 which is the number of steps that it takes for four GPUs to process 8000 batches.

We hope this brief example sparks your imagination on using LRRT for your own unique tuning challenges.
